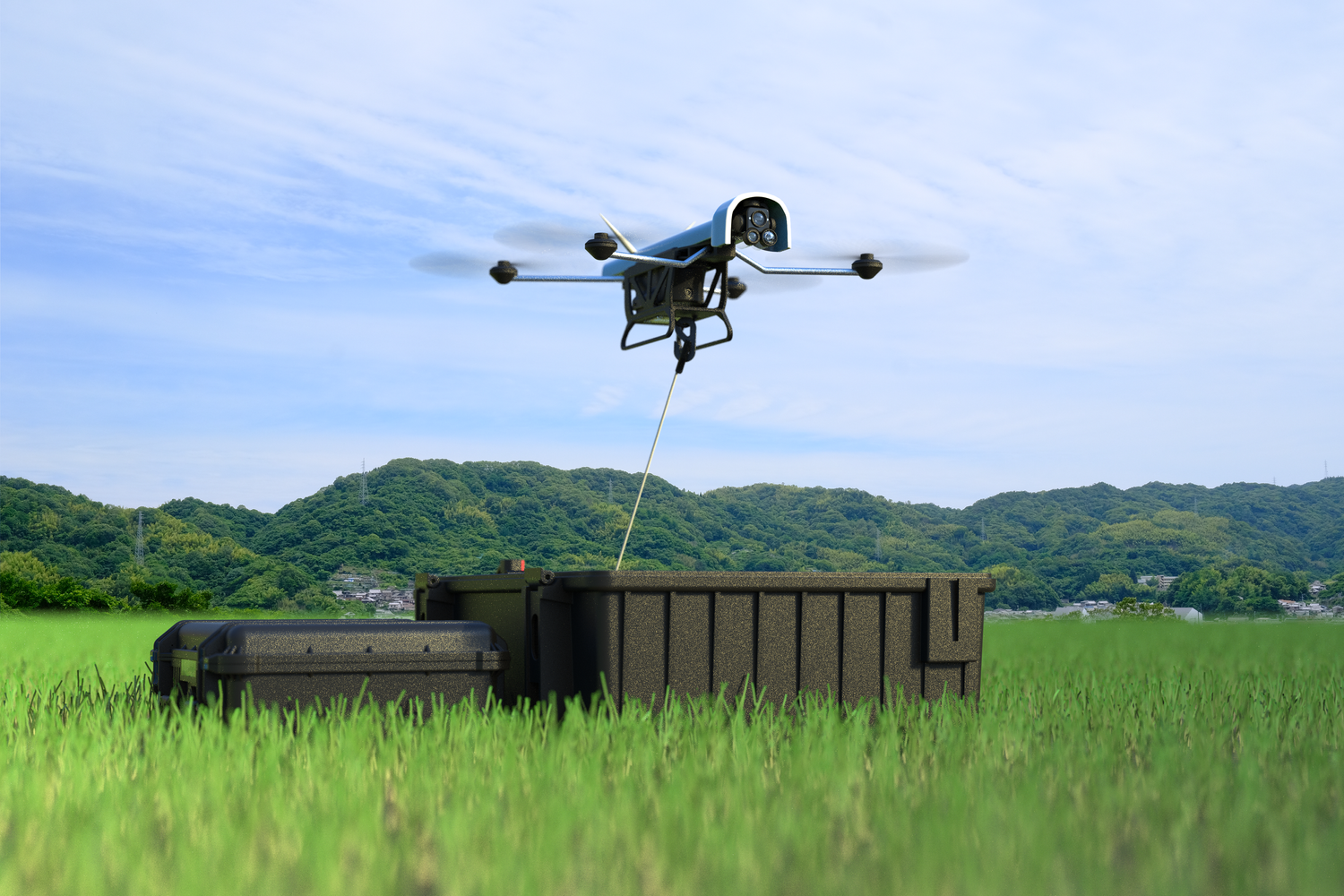

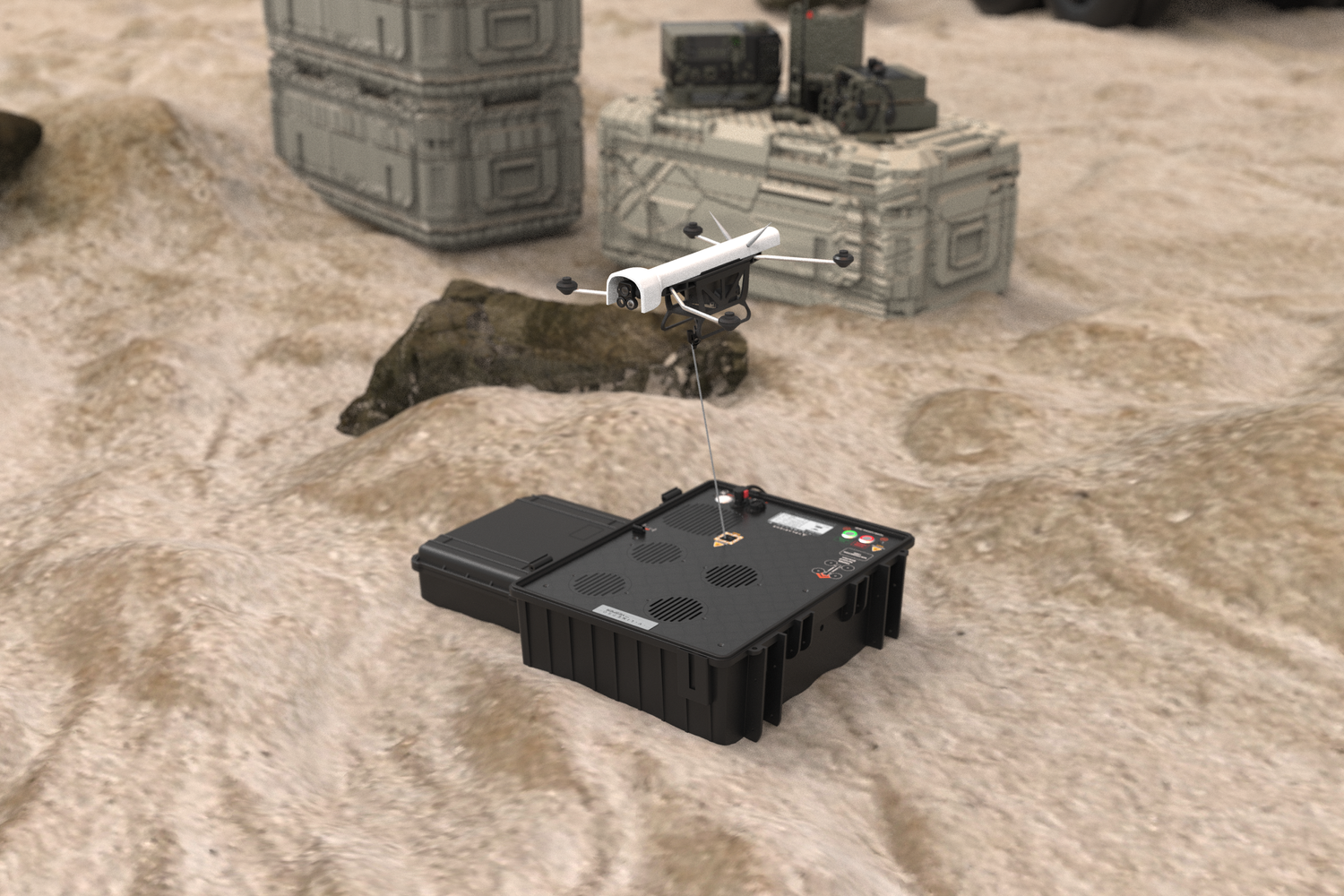

Vantage Robotics Vesper V-Line Pro – Tether Assembly

Compatible with Blue UAS drones, including Vesper
25 m (82 ft) tether with DC-powered tether station
Enables continuous flight with hot-swappable power
Up to 7 hours flight time on a single battery
V-Assist app provides real-time data and seamless integration with drone apps
Supports single-operator control for efficient mission management
Ideal for long-duration and critical operations

SKU: VESPER-TETHER Categories: Accessories, Batteries & Power, Drones, NDAA / Blue UAS / Green UAS, Tether Systems, Vantage Robotics, Vantage Robotics

Description

Vantage Robotics Vesper V-Line Pro – Tether Assembly

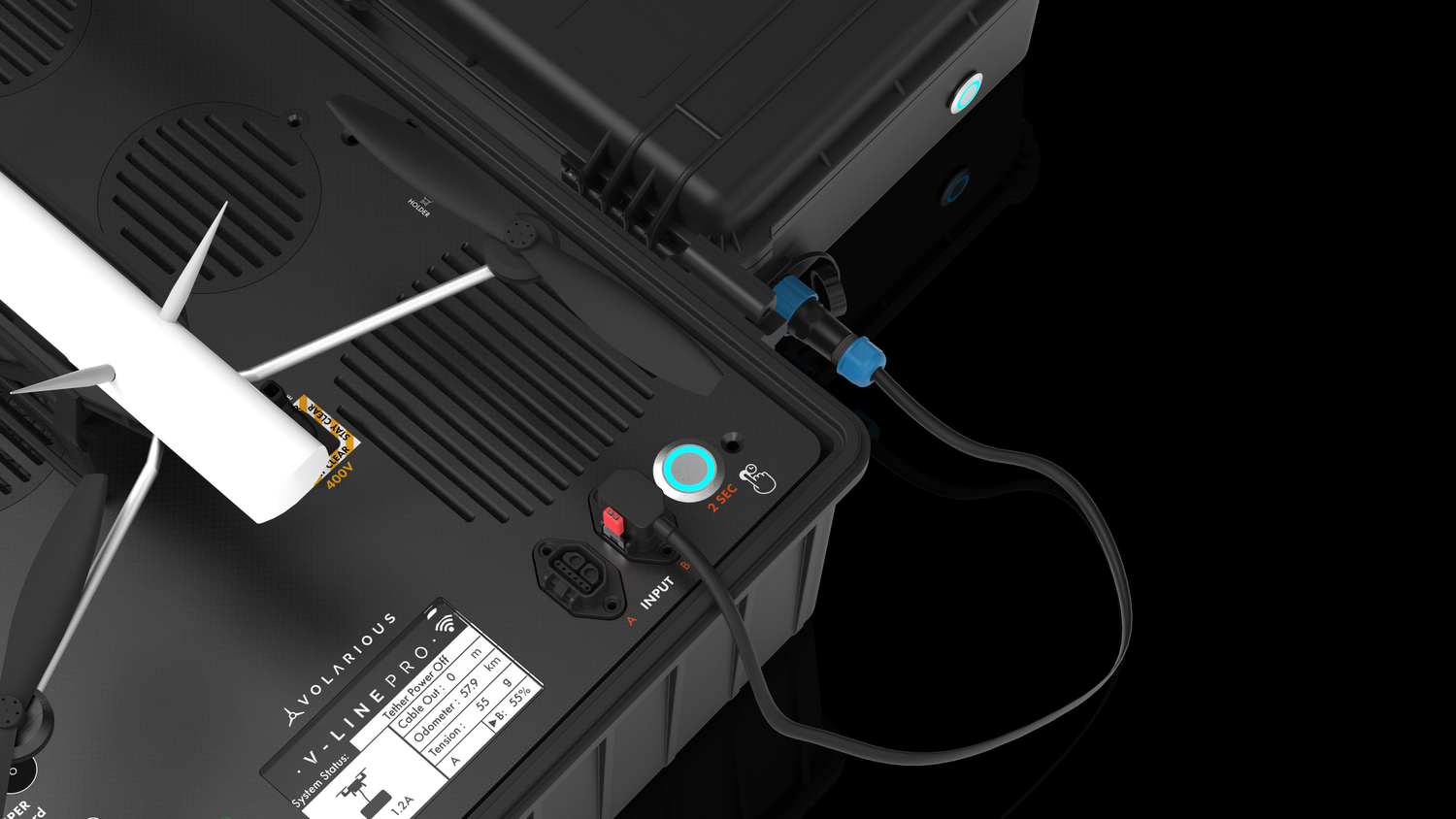

V-Line Pro Tethered Reel System for Vesper:

Manufacture Part No : VL4-VSP

Dimensions: 470 × 365 × 190 mm
Net Weight: 14.5 Kg
Input Voltage: 22 – 28VDC
Output Voltage: 380 VDC – 410 VDC
Maximum Output Current: 1.3A
Operating Temp : -10°C – 50°C (14F – 122F)
Max Tether Operating Range: 25 m (82ft)
Built-in protection: Fuse
Micro tether management: 5 m/s (16.4 ft/s) outwards, 3.5 m/s (11.5 ft/s) inwards

Vesper Power Module:

Dimensions: 113x60x67 mm
Net Weight: 265 g
Input Voltage: 380-410 VDC
Output Voltage: 15.0 VDC – 17.0 VDC
Max Output Power: 340W Operating Temperature: -10°C – 50°C (14°F – 122°F)

Recommended Power Supply:

JoulesPack JP2000 (7 hours)
Battery Type: LiFePO4
Nominal Voltage: 25.6 V
Rated Capacity: 80 Ah
Rated Energy: 2048 Wh
Maximum Continuous Discharge Rate: 25A
